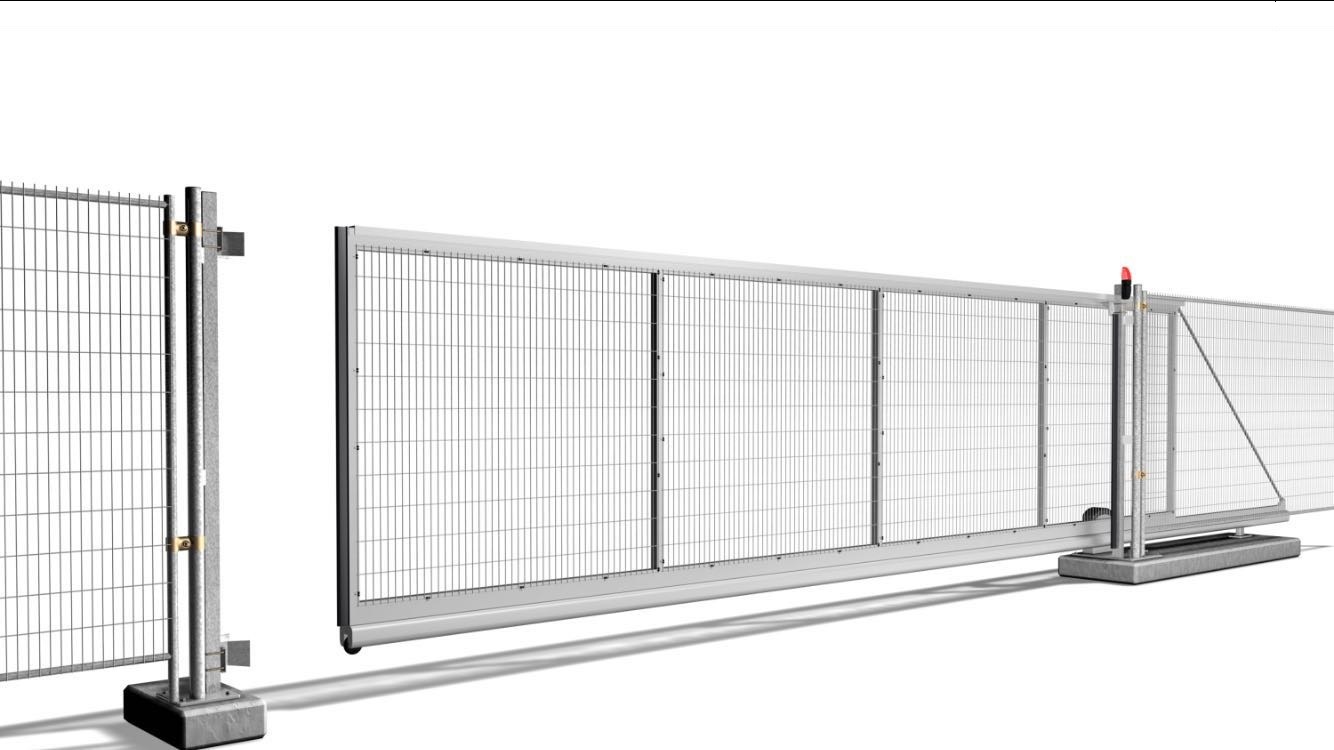

Mobiele schuifpoort- elektronisch

0,00

Beschikbaar voor Verkoop.

Productomschrijving

Met deze elektronische mobiele schuifpoort sluit je je werf veilig en comfortabel af.

  • Model HS vrije doorgang 7000mm  – H 2000mm, raster 35*150mm, dikte 4*3mm
  • Model HS vrije doorgang 6000mm  – H 2000mm, raster 35*150mm, dikte 4*3mm

Ook beschikbaar in handbediend model.

High Security schuifpoort 2 plug and play

  • Portalen en vulling : verzinkt
  • Poortvleugel in aluminium :

    Kader alu 100*50mm
    Verticale tussenstaanders  alu 50*50mm
    Geleidingsprofiel : alu 120*95mm

  • Vulling gaasmat : maas 35*150mm, draden diam 4/3mm, gaasmat gemonteerd op kader.
    • 1 geleideportaal 60*60mm met aansluitpaal diam 60mm
    • 1 aanslag/sluitportaal 60*60mm met aansluitpaal diam 60mm
  • Bediening elektrisch : 1 aandrijving/motor Belfox 800
  • Voedingsspanning 230V – stuurspanning 24V, standaard voorzien van noodaccu
  • incl 1 waarschuwingslicht LED – oranje
    • incl 1 druklijst (passief) op kopstijl poortvleugel – 1  op geleideportaal
    • incl 1 afstandbediening 2 kanalen
  • Toebehoren
    • Geassembleerd geleverd, plug and play systeem
    • Prefab fundatieblokken, te plaatsen in gegraven gat.
  • Inwendige gelagerde geleidsingswielen bevestigd op stalen voet
